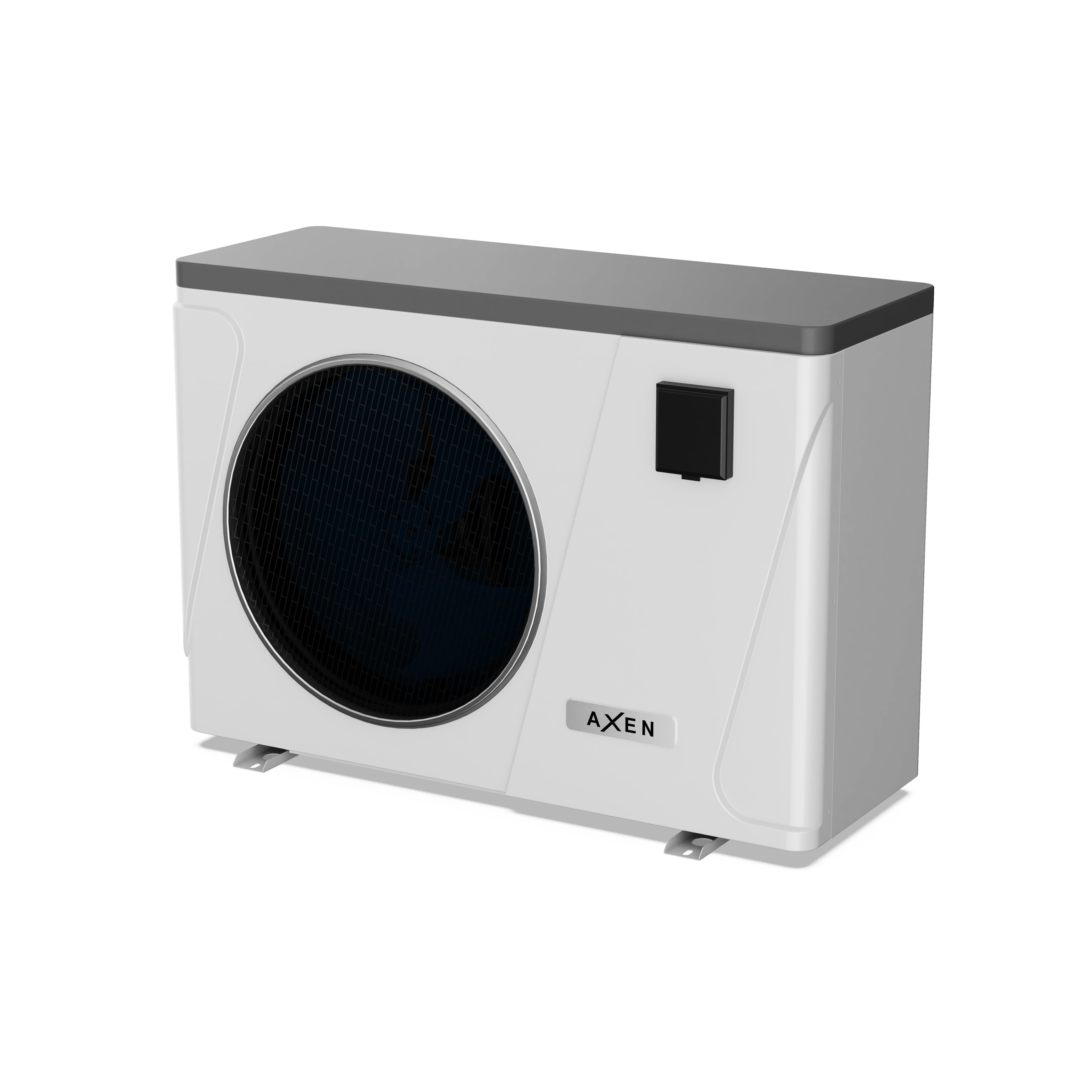

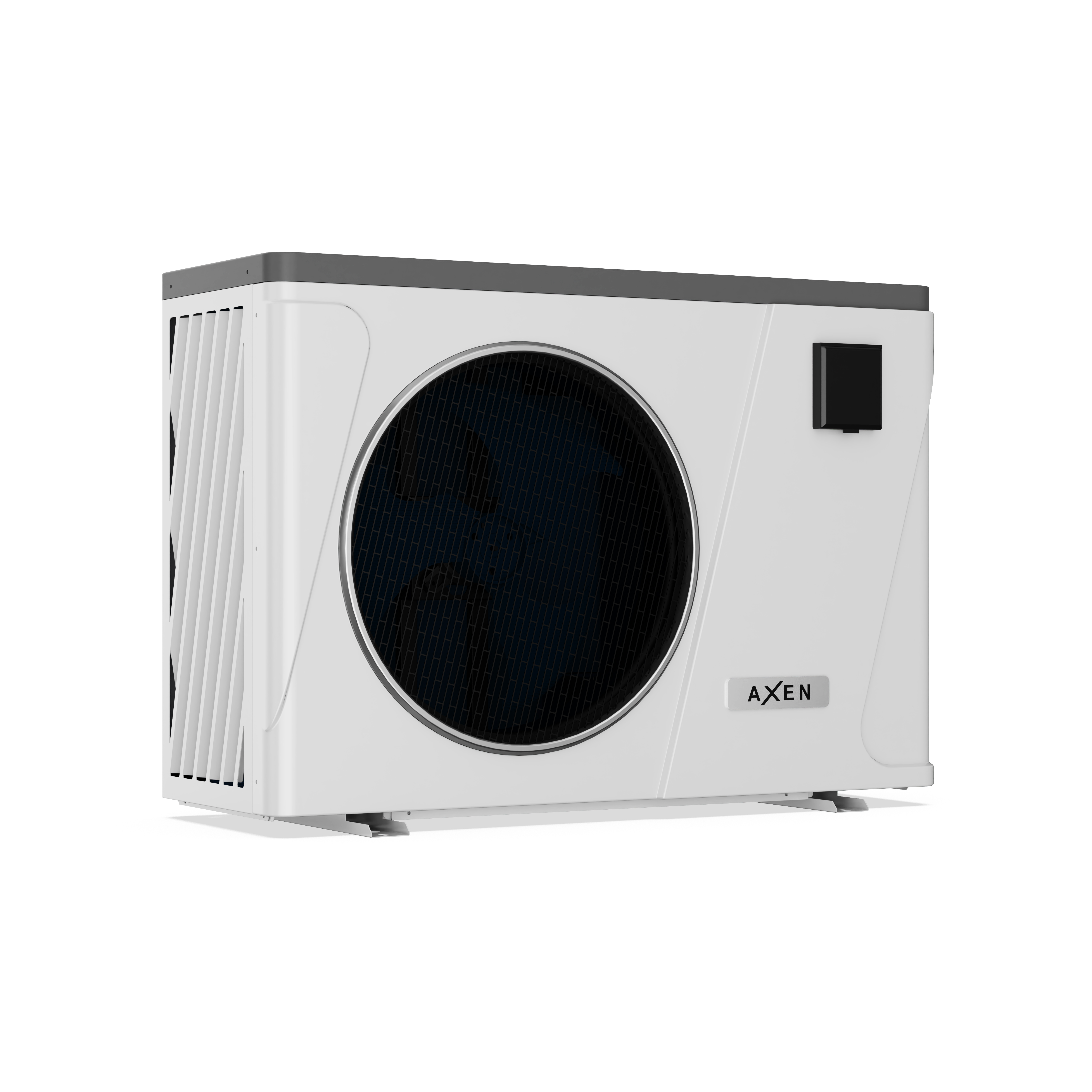

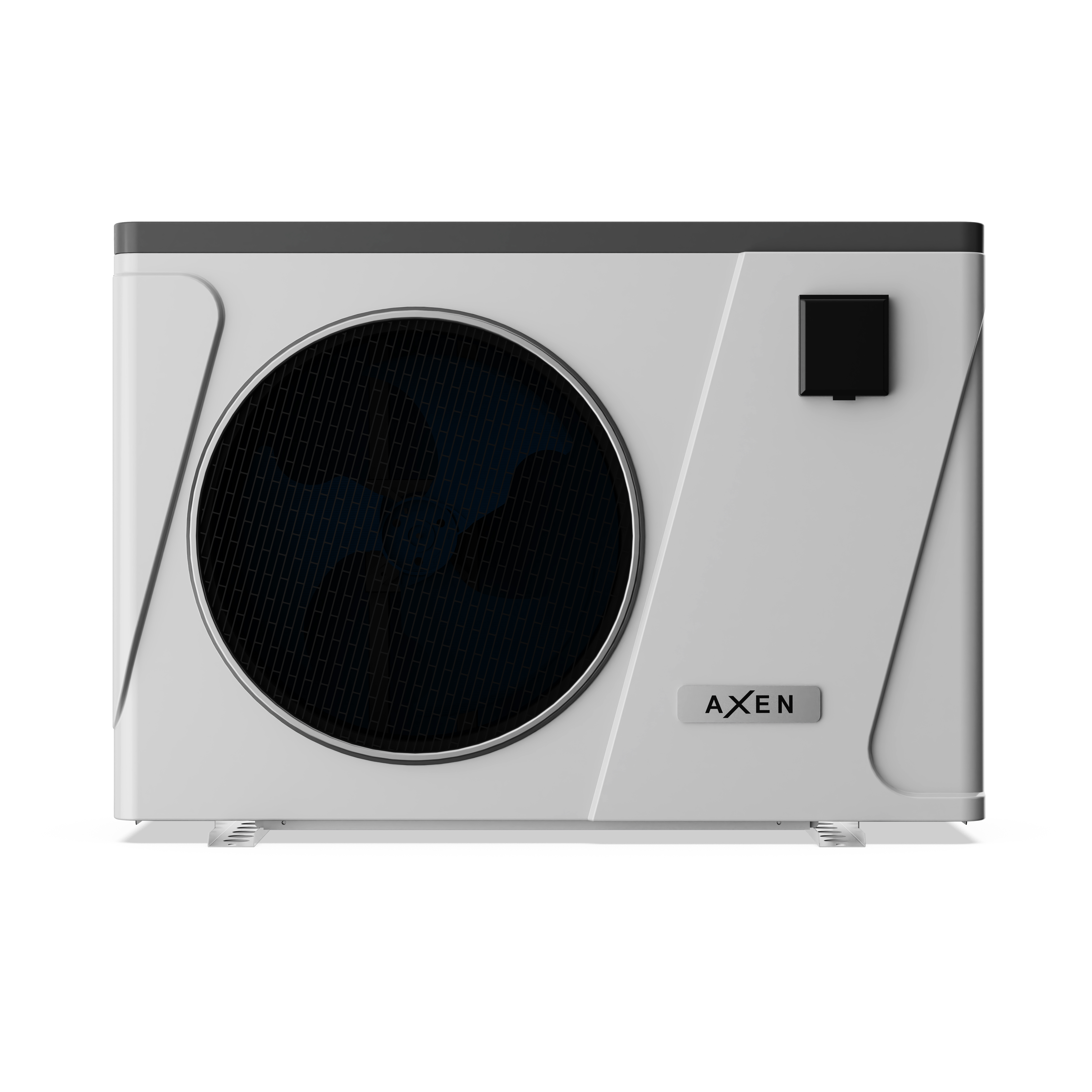

Neo Pro Series Swimming Pool Heat Pump

Name: Neo Pro Series Swimming Pool Heat Pump
Brand: GZ AXEN Heat Pump Technology CO.,LTD.

The Neo Pro Series features a corrosion-resistant titanium heat exchanger with enhanced heat transfer, easy connection with standard accessories, and a user-friendly LCD controller. It ensures reliable performance with built-in protection systems, automatic fault diagnosis, and defrosting. Optional ABS or galvanized steel cabinets and an anti-UV cover are available for added durability and protection.

Contact AXEN +

Specifications of Neo Pro Series Swimming Pool HP

Host model	External model	NEO-07-Pro	NEO-09-Pro	NEO-11-Pro	NEO-14-Pro	NEO-17-Pro	NEO-21-Pro	NEO-26-Pro	NEO-32-Pro	NEO-26TRI-Pro	NEO-32TRI-Pro
Air15℃/Water26℃ Humidity 70%	Capacity kW	1.2~5.1	1.6~6.8	2.2~8.3	2.8~11.5	3.4~13.4	3.6~16.5	4.9~20.5	6.3~23.6	4.9~20.5	6.3~23.6
	Power input(kW)	0.17~1.13	0.21~1.33	0.29~1.66	0.37~2.25	0.45~2.68	0.48~3.30	0.65~4.02	0.84~4.72	0.65~4.02	0.84~4.72
	COP	7.0~4.5	7.6~5.1	7.5~5.0	7.6~5.1	7.5~5.0	7.5~5.0	7.6~5.1	7.5~5.0	7.6~5.1	7.5~5.0
Air26℃/Water26℃ Humidity 80%	Capacity kW	1.5~7.5	1.9~8.9	2.2~10.7	3.2~14.6	4.1~17.5	4.6~20.5	5.9~26.6	7.7~32.2	5.9~26.6	7.7~32.2
	power input(kW)	0.11~1.25	0.12~1.37	0.14~1.67	0.20~2.25	0.28~2.82	0.29~3.20	0.37~4.09	0.49~5.03	0.37~4.09	0.49~5.03
	COP	13.5~6.0	16.0~6.5	15.8~6.4	16.0~6.5	14.5~6.2	15.8~6.4	16.0~6.5	15.8~6.4	16.0~6.5	15.8~6.4
Air35℃/Water28℃ Humidity 80%	Capacity（kW)	1.6~3.6	1.7~4.4	2.2~6.0	3.0~7.5	3.7~9.1	4.1~10.3	5.5~13.2	6.1~15.3	5.5~13.2	6.1~15.3
	Power input(kW)	0.25~1.00	0.26~1.19	0.34~1.67	0.45~2.03	0.57~2.53	0.63~2.86	0.83~3.57	0.94~4.25	0.83~3.57	0.94~4.25
	EER	6.5~3.6	6.6~3.7	6.5~3.6	6.6~3.7	6.5~3.6	6.5~3.6	6.6~3.7	6.5~3.6	6.6~3.7	6.5~3.6
Advised Pool Volume	m³	15~30	20~40	25~45	30~60	40~70	60~90	80~110	95~140	80~110	95~140
power supply	V / Ph / Hz	220-240~/ 1ph / 50								380-415~/3N / 50
max power input	kW	1.54	1.80	2.30	2.94	3.67	4.22	6.50	7.20	6.50	7.20
max current	A	6.70	7.83	10.00	12.78	15.96	18.35	28.26	31.30	9.42	10.43
water pipe in-out	inch	G1-1/2
Water Pressure	kpa	16	17	18	19	20	23	25	26	25	26
water flow	m³/h	2~4	3~5	5~7	6~8	7~9	8~11	12~15	15~18	12~15	15~18
Refrigerant volume	kg	R32/0.45kg	R32/0.5kg	R32/0.5kg	R32/0.85kg	R32/0.85kg	R32/1.1kg	R32/2.0kg	R32/2.0kg	R32/2.0kg	R32/2.0kg
Min pressure/max pressure	Mpa	1.5/4.15
unit dimensions	LxWxH(mm)	985420700						1187400810
package dimensions	LxWxH(mm)	1070430860						1260490980
net weight	kg	49	53	53	62	62	69	91	91	98	98
gross weight	kg	60	64	64	73	73	80	103	103	110	110
noise at 1 m	dB(A)	36.3~45.1	36.1~46.2	37.2~46.3	38.1~47.5	39.3~47.7	40.7~48.2	40.8~49.4	42.6~52.5	40.8~49.4	42.6~52.5
noise at 10m	dB(A)	18.1~26.2	18.5~27.8	19.8~28.6	20.0~29.7	21.2~30.6	21.5~31.2	21.5~31.4	21.6~31.7	21.5~31.4	21.6~31.7
Operating air temperature	℃	-15~43
compressor brand		GMCC
compressor type		Rotary
water proof level		IPX4

Details of Neo Pro Series Swimming Pool HP

1.Prolonged Operating Life

Titanium heat exchanger paired with a weather-resistant vacuum-formed ABS casing ensures long-lasting performance and durability in outdoor environments.

2. Environment-friendly refrigerant R32

Environment-friendly refrigerant R32 is deployed in all AXEN heat pump units. It has lower GWP (Global Warming Potential) 675 which has lower impact on mother earth. Meanwhile, R32 refrigerant has better energy performance.

3. Inverter technology

Inverter technology has been used in Axen Galaxy series. Benefits of inverter include fast start-up, avoiding frequent start and stop, low noise and high energy efficiency. Axen also applies well-known brand components to build a more reliable inverter system.

Inverter technology

4. Low noise performance

With CozyQuiet® Silent Technology, AXEN’s inverter pool heat pump ensures ultra-quiet operation—no louder than a gentle whisper.

5. App control (optional)

You can choose to have Axen wifi module installed in your heat pump. With just simply a few touches on your mobile, you can control the heat pump even you are away from home.
